John Deere約翰迪爾強鹿6068 3.9-6.8L風扇與風扇皮帶維修零件圖冊

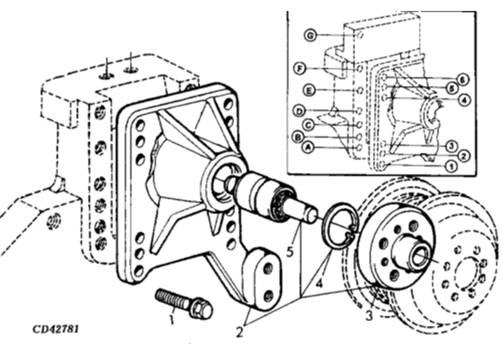

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 19M7835 SCREW 4 X M10 X 35, (10.9) (POSITIONING HOLES A2 +

E5)

19M7835 SCREW 4 X M10 X 35, (10.9) (POSITIONING HOLES D1 +

E3)

2 RE70177 SUPPORT 1 X X (MARKED R134775)

3 .................. HUB 1 X X COMMANDER RE70177

4 E1343FN SNAP RING 1 X X

5 .................. BALL BEARING 1 X X COMMANDER RE70177

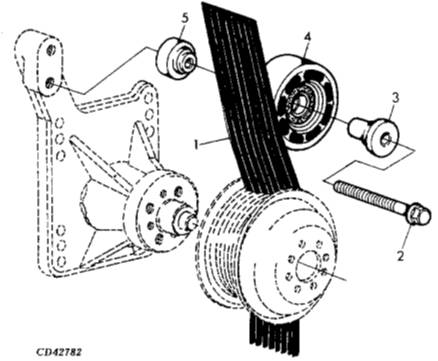

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 R123441 BELT 1 X LGTH 1575MM

2 19M7808 SCREW 1 X M10 X 65, (10.9)

3 R107749 SLEEVE 1 X

4 RE68722 PULLEY 1 X

5 R500320 SPACER 1 X
