John Deere約翰迪爾強鹿交流充電發電機配件維修維護技術零件資料手冊

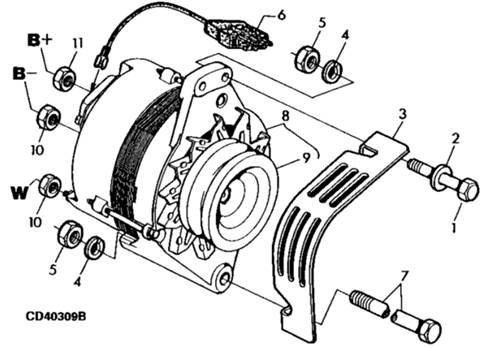

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 19H2661 CAP SCREW 1 X 5/16" X 1-3/8"

2 24H1292 WASHER 1 X 11/32" X 3/4" X 0.120"

3 .................. SHIELD NA X

4 12M7056 LOCK WASHER 2 X 8.100 MM

5 14H785 NUT 1 X 5/16"

6 RE62627 CONNECTOR 1 X 47 OHMS

7 19H1897 CAP SCREW 1 X 5/16" X 3-3/4"

8 RE57960 ALTERNATOR 1 X (MAGNETON 443113516760, 12V - 55A)

9 R134417 SHEAVE 1 X 11/16" X OD 88MM

10 14M7265 LOCK NUT 2 X M5

11 14M7165 LOCK NUT 1 X M6

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

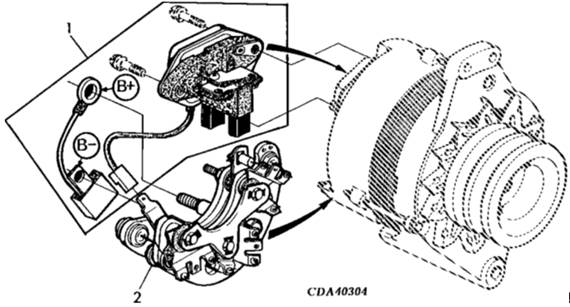

1 RE63497 REGULATOR 1 X (A) STD, 12V

2 RE58515 DIODE 1 X (A) 12V

(A) SEE YOUR AUTHORIZED ALTERNATOR REPAIR STATION FOR PARTS NOT LISTED

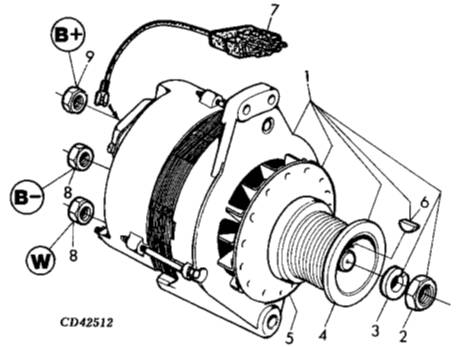

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 RE501634 ALTERNATOR 1 X X (MAGNETON 443113516241, 12V - 55A)

2 14M7156 NUT 1 X X M14

3 12H317 LOCK WASHER 1 X X 9/16"

4 R501192 SHEAVE 1 X X

5 T158584 FAN 1 X X

6 .................. SHAFT KEY 1 X X

7 RE62627 CONNECTOR 1 X X

8 14M7360 LOCK NUT 2 X X M5

9 14M7165 LOCK NUT 1 X X M6

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 RE63497 REGULATOR 1 X X (A) STD, 12V

2 RE58515 DIODE 1 X X (A) 12V

(A) SEE YOUR AUTHORIZED ALTERNATOR REPAIR STATION FOR PARTS NOT LISTED
