John Deere約翰迪爾6068發動機燃油泵零件氣冊
詳細描述
John Deere約翰迪爾強鹿6068 6.8L柴油發動機燃油泵零件圖冊
16BE (LUCAS) (ESN -777186)
16BE (LUCAS) (ESN -777186)
16BE (LUCAS) (ESN -777186)
16BE (LUCAS) (ESN -777186)
16BE (LUCAS) (ESN -777186)
16BE (LUCAS) (ESN -777186)

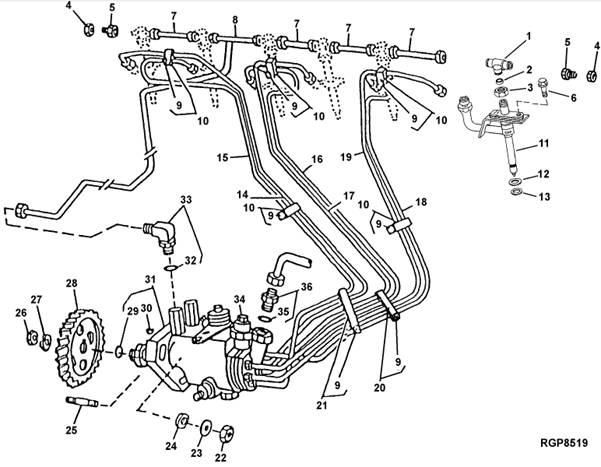

RGP8519 -UN-29JAN02
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R71963 TEE FITTING 1 X
2 R79605 WASHER 1 X
3 R79604 TUBE NUT 1 X
4 R123593 TUBE NUT 2 X
5 AR85519 PLUG 2 X
6 R116366 SCREW 1 X
7 RE68748 TUBE 4 X
8 RE68899 FUEL LINE 1 X
9 19M7923 CAP SCREW 6 X M6 X 12
10 RE19797 CLAMP 4 X (FUEL LINE NO. 1-2, 3-4, 5-6)
11 RE48786 INJECTION NOZZLE 1 X (CONSISTS OF RE500390, R92352 AND
T24472)
12 R92352 PACKING 1 X
13 R48000 SEAL 1 X
R500390 WASHER 1 X
14 RE60049 FUEL LINE 1 X NO. 1
15 RE60050 FUEL LINE 1 X NO. 2
16 RE60051 FUEL LINE 1 X NO. 3
17 RE60052 FUEL LINE 1 X NO. 4
18 RE60053 FUEL LINE 1 X NO. 5
19 RE60054 FUEL LINE 1 X NO. 6
20 RE19799 CLAMP 1 X (FUEL LINE. NO. 3-6)
21 RE19800 CLAMP 1 X (FUEL LINE NO. 1,2,3,4,5,6)
22 14M7273 NUT 3 X M8
23 12M7065 LOCK WASHER 3 X 8 MM
24 T27860 WASHER 3 X
25 R116386 STUD 3 X
26 R91360 NUT 1 X
27 R132874 WASHER 1 X
28 R132267 GEAR 1 X
29 R128799 O-RING 1 X
30 26H73 SHAFT KEY 1 X 5/32" X 5/8"
31 RE63559 FUEL INJECTION PUMP 1 X (A) (DP201)
32 51M7039 O-RING 1 X 8.100 X 1.600 MM
33 RE502173 FITTING 1 X
34 RE54064 SOLENOID 1 X
35 51M7040 O-RING 1 X 9.300 X 2.200 MM
36 RE60029 ADAPTER 1 X
(A) SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS
CONSULTEZ VOTRE REPARATEUR DE POMPE AGREE POUR LES PIECES NON CATALOGUEES
NICHT GEZEIGTE TEILE VON PUMPENWERKSTATT BEZIEHEN
PER LE PARTI NON ELENCATE, RIVOLGETEVI AL CENTRO AUTORIZZATO DI RIPARAZIONE
CONSULTE CON SU ESTACION AUTORIZADA RE PEPARACIONES DE BOMBA
RAADGOER MED EN AUTORISERAD PUMPSERVICVERKSTAD BETRAEFFANDE EJ UPPTAGNA
POWERTECH

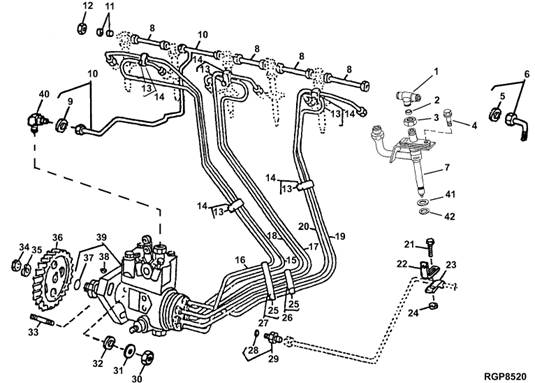

16BE (STANADYNE) (ESN 777167- )
16BE (STANADYNE) (ESN 777167- )
16BE (STANADYNE) (ESN 777167- )
16BE (STANADYNE) (ESN 777167- )
16BE (STANADYNE) (ESN 777167- )
16BE (STANADYNE) (ESN
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R71963 TEE FITTING 1 X
2 R79605 WASHER 1 X
3 R79604 TUBE NUT 1 X
4 R116366 SCREW 1 X
5 R51936 WASHER 1 X
6 RE16142 FUEL LINE 1 X
7 RE48786 INJECTION NOZZLE 1 X (CONSISTS OF RE500390, R92352 AND
T24472)
8 RE68748 TUBE 4 X
9 R51936 WASHER 1 X
10 RE70848 FUEL LINE 1 X
11 AR85519 PLUG 2 X
12 R123593 TUBE NUT 2 X
13 19M7923 CAP SCREW 5 X M6 X 12
14 RE19797 CLAMP 5 X (FUEL LINE NO. 1-2,3-4,5-6,1-3)
15 RE60055 FUEL LINE 1 X NO. 1
16 RE60056 FUEL LINE 1 X NO. 2
17 RE60057 FUEL LINE 1 X NO. 3
18 RE60058 FUEL LINE 1 X NO. 4
19 RE60059 FUEL LINE 1 X NO. 5
20 RE60060 FUEL LINE 1 X NO. 6
21 19M7865 SCREW 1 X M8 X 16, (CODE 3518)
22 R116116 BRACKET 1 X (CODE 3518)
23 T14050 CLAMP 1 X (CODE 3518)
24 14M7298 FLANGE NUT 1 X M8, (CODE 3518)
25 19M7923 CAP SCREW 2 X M6 X 12
26 RE19799 CLAMP 1 X (FUEL LINE NO. 3-6)
27 RE19800 CLAMP 1 X (FUEL LINE NO. 1,2,3,4,5,6)
28 51M7040 O-RING 1 X 9.300 X 2.200 MM
29 RE60029 ADAPTER 1 X
30 14M7273 NUT 3 X M8
31 12M7065 LOCK WASHER 3 X
32 T27860 WASHER 3 X
33 R116386 STUD 3 X
34 R91360 NUT 1 X
35 R132874 WASHER 1 X
36 R132267 GEAR 1 X (60 TEETH)
37 R502076 O-RING 1 X (SUB FOR R89944)
38 26H73 SHAFT KEY 1 X
39 RE501302 FUEL INJECTION PUMP 1 X (A) (12 V)
40 R67364 ELBOW FITTING 1 X
41 R92352 PACKING 1 X
42 R48000 SEAL 1 X
R500390 WASHER 1 X
(A) SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS
CONSULTEZ VOTRE REPARATEUR DE POMPE AGREE POUR LES PIECES NON CATALOGUEES
NICHT GEZEIGTE TEILE VON PUMPENWERKSTATT BEZIEHEN
PER LE PARTI NON ELENCATE, RIVOLGETEVI AL CENTRO AUTORIZZATO DI RIPARAZIONE
CONSULTE CON SU ESTACION AUTORIZADA RE PEPARACIONES DE BOMBA
RAADGOER MED EN AUTORISERAD PUMPSERVICVERKSTAD BETRAEFFANDE EJ UPPTAGNA
POWERTECH
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R123593 TUBE NUT 4 X
2 R67364 ELBOW FITTING 1 X
3 RE70848 FUEL LINE 1 X
4 RE68748 TUBE 4 X
5 RE19797 CLAMP 5 X (FUEL LINE NO. 1-2,3-4,5-6)
6 19M7923 CAP SCREW 5 X M6 X 12
7 RE60055 FUEL LINE 1 X NO. 1
8 RE60056 FUEL LINE 1 X NO. 2
9 RE60057 FUEL LINE 1 X NO. 3
10 RE60058 FUEL LINE 1 X NO. 4
11 RE60059 FUEL LINE 1 X NO. 5
12 RE60060 FUEL LINE 1 X NO. 6
13 AR85519 PLUG 2 X
14 R132267 GEAR 1 X (60 TEETH)
15 R132874 WASHER 1 X
16 R91360 NUT 1 X
17 19M7923 CAP SCREW 2 X M6 X 12
18 R116386 STUD 3 X
19 RE19799 CLAMP 1 X (FUEL LINE NO. 3-6)
20 RE19800 CLAMP 1 X (FUEL LINE NO. 1,2,3,4,5,6)
21 51M7040 O-RING 1 X 9.300 X 2.200 MM
22 RE60029 ADAPTER 1 X
23 14M7273 NUT 3 X M8
24 26H73 SHAFT KEY 1 X
25 RE501523 FUEL INJECTION PUMP 1 X (A)
26 T27860 WASHER 3 X 8.740 X 17.500 X 1.664 MM
27 12M7065 LOCK WASHER 3 X
28 R502076 O-RING 1 X
29 R51936 WASHER 2 X
30 R48000 SEAL 1 X
R500390 WASHER 1 X
31 R92352 PACKING 1 X
32 RE48786 INJECTION NOZZLE 1 X (CONSISTS OF RE500390, R92352 AND
T24472)
33 R79604 TUBE NUT 1 X
34 R79605 WASHER 1 X
35 R71963 TEE FITTING 1 X
36 R116366 SCREW 1 X
(A) SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS
CONSULTEZ VOTRE REPARATEUR DE POMPE AGREE POUR LES PIECES NON CATALOGUEES
NICHT GEZEIGTE TEILE VON PUMPENWERKSTATT BEZIEHEN
PER LE PARTI NON ELENCATE, RIVOLGETEVI AL CENTRO AUTORIZZATO DI RIPARAZIONE
CONSULTE CON SU ESTACION AUTORIZADA RE PEPARACIONES DE BOMBA
RAADGOER MED EN AUTORISERAD PUMPSERVICVERKSTAD BETRAEFFANDE EJ UPPTAGNA
POWERTECH
16CW (STANADYNE) (ESN 715740- )
16CW (STANADYNE) (ESN 715740- )
16CW (STANADYNE) (ESN 715740- )
16CW (STANADYNE) (ESN 715740- )
16CW (STANADYNE) (ESN 715740- )
16CW (STANADYNE) (ESN 715740- )

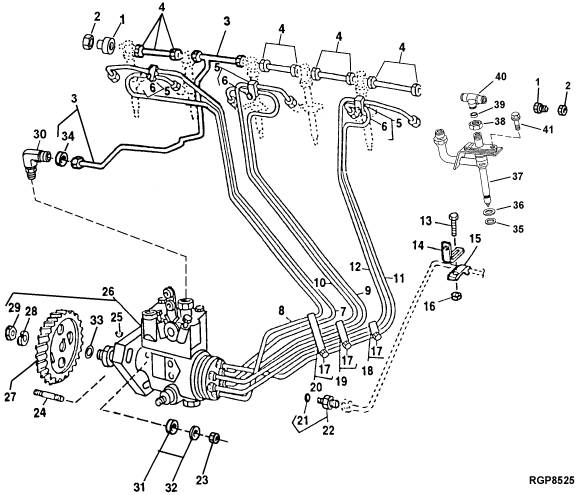

RGP8525 -UN-04FEB02
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 AR85519 PLUG 2 X
2 R123593 TUBE NUT 2 X
3 RE70848 FUEL LINE 1 X
4 RE68748 TUBE 4 X
5 RE19797 CLAMP 5 X (FUEL LINE NO. 1-2,3-4,5-6)
6 19M7300 CAP SCREW 5 X M6 X 10
7 RE60055 FUEL LINE 1 X NO. 1
8 RE60056 FUEL LINE 1 X NO. 2
9 RE60057 FUEL LINE 1 X NO. 3
10 RE60058 FUEL LINE 1 X NO. 4
11 RE60059 FUEL LINE 1 X NO. 5
12 RE60060 FUEL LINE 1 X NO. 6
13 19M7865 SCREW 1 X (OPTION 3518)
14 R116116 BRACKET 1 X (OPTION 3518)
15 T14050 CLAMP 1 X (OPTION 3518)
16 14M7298 FLANGE NUT 1 X (OPTION 3518)
17 19M7300 CAP SCREW 2 X M6 X 10
18 RE19797 CLAMP 3 X
19 RE19799 CLAMP 1 X (FUEL LINE NO. 3-6)
20 RE19800 CLAMP 1 X (FUEL LINE NO. 1,2,3,4,5,6)
21 51M7040 O-RING 1 X 9.300 X 2.200 MM
22 RE60029 ADAPTER 1 X
23 14M7273 NUT 3 X M8
24 R116386 STUD 3 X
25 26H73 SHAFT KEY 1 X
26 RE501344 FUEL INJECTION PUMP 1 X (A) (12 V)
27 R132267 GEAR 1 X (60 TEETH)
28 R132874 WASHER 1 X
29 R91360 NUT 1 X M14
30 R67364 ELBOW FITTING 1 X
31 T27860 WASHER 3 X
32 12M7065 LOCK WASHER 3 X (SUB FOR R89944)
33 R502076 O-RING 1 X
34 R51936 WASHER 2 X
35 R48000 SEAL 1 X
R500390 WASHER 1 X
36 R92352 PACKING 1 X
37 RE48786 INJECTION NOZZLE 1 X (CONSISTS OF RE500390, R92352 AND
T24472)
38 R79604 TUBE NUT 1 X
39 R79605 WASHER 1 X
40 R71963 TEE FITTING 1 X
41 R116366 SCREW 1 X
(A) SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS
CONSULTEZ VOTRE REPARATEUR DE POMPE AGREE POUR LES PIECES NON CATALOGUEES
NICHT GEZEIGTE TEILE VON PUMPENWERKSTATT BEZIEHEN
PER LE PARTI NON ELENCATE, RIVOLGETEVI AL CENTRO AUTORIZZATO DI RIPARAZIONE
CONSULTE CON SU ESTACION AUTORIZADA RE PEPARACIONES DE BOMBA
RAADGOER MED EN AUTORISERAD PUMPSERVICVERKSTAD BETRAEFFANDE EJ UPPTAGNA
