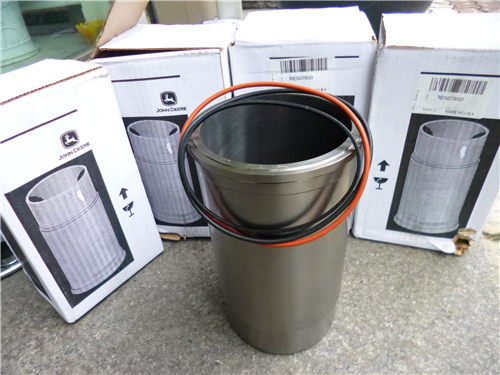

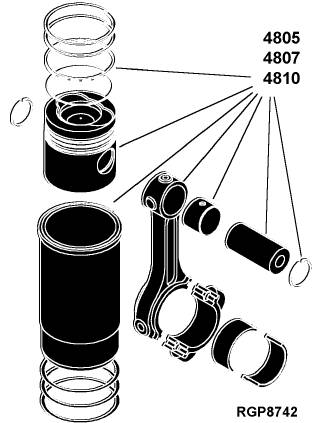

活塞、連桿、缸套

John Deere約翰迪爾強鹿柴油發動機活塞、連桿、缸套零件圖冊

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 R114083 SCREW 12 -794054 X (DUBUQUE T0)

R114083 SCREW 12 -036627 X (TORREON PE)

R114083 SCREW 12 -554035 X (SARAN CD)

R501124 SCREW 12 794055- X (DUBUQUE T0)

R501124 SCREW 12 036628- X (TORREON PE)

R501124 SCREW 12 554036- X (SARAN CD)

2 R123960 BUSHING 6 X

3 RE60272 CONNECTING ROD 6 -794054 X (MARKED R123959) (SUB RE500002)

(DUBUQUE T0)

RE60272 CONNECTING ROD 6 -036627 X (MARKED R123959) (SUB RE500002)

(TORREON PE)

RE60272 CONNECTING ROD 6 -554035 X (MARKED R123959) (SUB RE500002) (SARAN

CD)

RE500002 CONNECTING ROD 6 794054- X (MARKED R500000) (DUBUQUE T0)

RE500002 CONNECTING ROD 6 036628- X (MARKED R500000) (TORREON PE)

RE500002 CONNECTING ROD 6 554036- X (MARKED R500000) (SARAN CD)

4 M41029 SNAP RING 12 X

5 R123178 PISTON PIN 6 X

6 RE66271 PISTON RING KIT 6 X (OPTION 9900)

7 .................. PISTON 6 X

8 .................. CYLINDER LINER 6 X

9 AR65507 O-RING KIT 6 X (OPTION 9900)

10 RE65966 PISTON-LINER KIT 6 -825562 X (SUB RE505110) (OPTION 9900)

RE505110 PISTON-LINER KIT 6 825563- X (OPTION 9900)

11 RE65908 BEARING 6 X (OPTION 9900)

RE65909 BEARING 6 X US, 0.254 MM (0.010") (OPTION 9900)

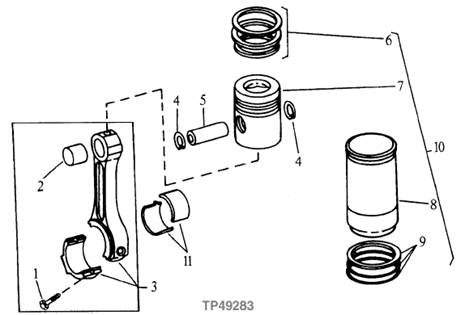

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 R114083 SCREW 12 -794054 X (DUBUQUE T0)

R114083 SCREW 12 -036627 X (TORREON PE)

R114083 SCREW 12 -554035 X (SARAN CD)

R501124 SCREW 12 794054- X (DUBUQUE T0)

R501124 SCREW 12 036628- X (TORREON PE)

R501124 SCREW 12 554036- X (SARAN CD)

2 R123960 BUSHING 6 X

3 RE60272 CONNECTING ROD 6 -794054 X (MARKED R123959) (SUB RE500002)

(DUBUQUE T0)

RE60272 CONNECTING ROD 6 -036627 X (MARKED R123959) (SUB RE500002)

(TORREON PE)

RE60272 CONNECTING ROD 6 -554035 X (MARKED R123959) (SUB RE500002) (SARAN

CD)

RE500002 CONNECTING ROD 6 794055- X (MARKED R500000) (DUBUQUE T0)

RE500002 CONNECTING ROD 6 036628- X (MARKED R500000) (TORREON PE)

RE500002 CONNECTING ROD 6 554036- X (MARKED R500000) (SARAN CD)

4 M41029 SNAP RING 12 X

5 R123178 PISTON PIN 6 X

6 RE66271 PISTON RING KIT 6 X (OPTION 9900)

7 .................. PISTON 6 X

8 .................. CYLINDER LINER 6 X

9 AR65507 O-RING KIT 6 X (OPTION 9900)

10 RE65967 PISTON-LINER KIT 6 -825562 X (OPTION 9900)

RE505111 PISTON-LINER KIT 6 825563- X (SARAN CD) (DUBUQUE T0) (TORREONE PE)

(OPTION 9900)

11 RE65908 BEARING 6 X (OPTION 9900)

RE65909 BEARING 6 X US, 0.254 MM (0.010") (OPTION 9900)

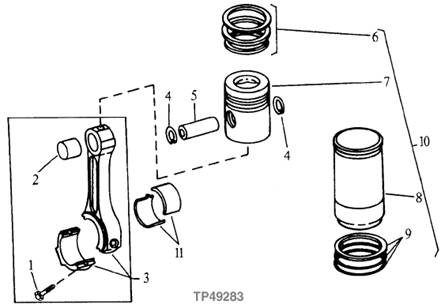

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS

1 R114083 SCREW 12 -794054 X (DUBUQUE T0)

R114083 SCREW 12 -036627 X (TORREON PE)

R114083 SCREW 12 -554035 X (SARAN CD)

R501124 SCREW 12 794054- X (DUBUQUE T0)

R501124 SCREW 12 036628- X (TORREON PE)

R501124 SCREW 12 554036- X (SARAN CD)

2 R123960 BUSHING 6 X X

3 RE60272 CONNECTING ROD 6 -794054 X (MARKED R123959) (SUB RE500002)

(DUBUQUE T0)

RE60272 CONNECTING ROD 6 -036627 X (MARKED R123959) (SUB RE500002)

(TORREON PE)

RE60272 CONNECTING ROD 6 -554035 X (MARKED R123959) (SUB RE500002) (SARAN

CD)

RE500002 CONNECTING ROD 6 794055- X (MARKED R500000) (DUBUQUE T0)

RE500002 CONNECTING ROD 6 036628- X (MARKED R500000) (TORREON PE)

RE500002 CONNECTING ROD 6 554036- X (MARKED R500000) (SARAN CD)

4 M41029 SNAP RING 12 X X

5 R123178 PISTON PIN 6 X X

6 RE66271 PISTON RING KIT 6 X X (OPTION 9900)

7 .................. PISTON 6 X X

8 .................. CYLINDER LINER 6 X X

9 AR65507 O-RING KIT 6 X X (OPTION 9900)

10 RE65967 PISTON-LINER KIT 6 -825562 X X (OPTION 9900)

RE505111 PISTON-LINER KIT 6 825563- X X (DUBUQUE T0) (TORREON PE) (SARAN CD)

(OPTION 9900)

11 RE65908 BEARING 6 X X (OPTION 9900)

RE65909 BEARING 6 X X US, 0.254 MM (0.010") (OPTION 9900)

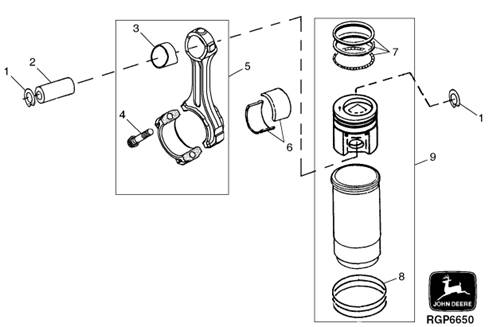

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 R54114 SNAP RING 12 X X

2 R123177 PISTON PIN 6 X X

3 R114082 BUSHING 6 X X

4 R114083 SCREW 12 -794080 X X (DUBUQUE T0)

R114083 SCREW 12 -036627 X X (TORREON PE)

R114083 SCREW 12 -554035 X X (SARAN CD)

R501124 SCREW 12 794081- X X (DUBUQUE T0)

R501124 SCREW 12 036628- X X (TORREON PE)

R501124 SCREW 12 554036- X X (SARAN CD)

5 RE50770 CONNECTING ROD 6 -794080 X X (MARKED R114081) (SUB RE500608)

(DUBUQUE T0)

RE50770 CONNECTING ROD 6 -036627 X X (MARKED R114081) (SUB RE500608)

(TORREON PE)

RE50770 CONNECTING ROD 6 -554035 X X (MARKED R114081) (SUB RE500608) (SARAN

CD)

RE500608 CONNECTING ROD 6 794081- X X (MARKED R500335) (DUBUQUE T0)

RE500608 CONNECTING ROD 6 036628- X X (MARKED R500335) (TORREON PE)

RE50770 CONNECTING ROD 6 554036- X X (MARKED R500335) (SARAN CD)

6 RE65908 BEARING 6 X X (OPTION 9900)

RE65909 BEARING 6 X X US, 0.254 MM (0.010") (OPTION 9900)

7 RE66820 PISTON RING KIT 6 X X (OPTION 9900)

8 AR65507 O-RING KIT 6 X X (OPTION 9900)

9 RE65969 PISTON-LINER KIT 6 -825562 X X (SUB RE505112) (OPTION

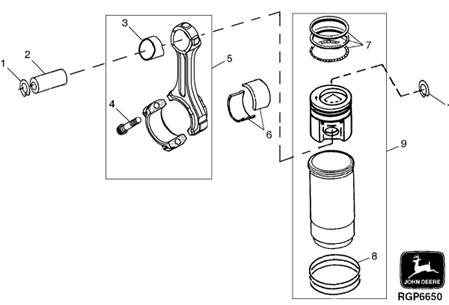

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 R54114 SNAP RING 12 X X X

2 R123177 PISTON PIN 6 X X X

3 R114082 BUSHING 6 X X X

4 R114083 SCREW 12 -794080 X X X (DUBUQUE T0)

R114083 SCREW 12 -036627 X X X (TORREON PE)

R114083 SCREW 12 -554035 X X X (SARAN CD)

R501124 SCREW 12 794081- X X X (DUBUQUE T0)

R501124 SCREW 12 036628- X X X (TORREON PE)

R501124 SCREW 12 554036- X X X (SARAN CD)

5 RE50770 CONNECTING ROD 6 -794080 X X X (MARKED R114081) (SUB RE500608)

(DUBUQUE T0)

RE50770 CONNECTING ROD 6 -036627 X X X (MARKED R114081) (SUB RE500608)

(TORREON PE)

RE50770 CONNECTING ROD 6 -554035 X X X (MARKED R114081) (SUB RE500608) (SARAN

CD)

RE500608 CONNECTING ROD 6 794081- X X X (MARKED R500335) (DUBUQUE T0)

RE500608 CONNECTING ROD 6 036628- X X X (MARKED R500335) (TORREON PE)

RE50770 CONNECTING ROD 6 554036- X X X (MARKED R500335) (SARAN CD)

6 RE65908 BEARING 6 X X X (OPTION 9900)

RE65909 BEARING 6 X X X US, 0.254 MM (0.010") (OPTION 9900)

7 RE66820 PISTON RING KIT 6 X X X (OPTION 9900)

8 AR65507 O-RING KIT 6 X X X (OPTION 9900)

9 RE65969 PISTON-LINER KIT 6 -825562 X X X (SUB RE505112) (OPTION 9900)

RE505112 PISTON-LINER KIT 6 825563- X X X (OPTION 9900)
