John Deere約翰迪爾強鹿發動機油水分離器零件圖冊
詳細描述
油水分離器
John Deere約翰迪爾強鹿6068 6.8L柴油發動機油水分離器零件圖冊

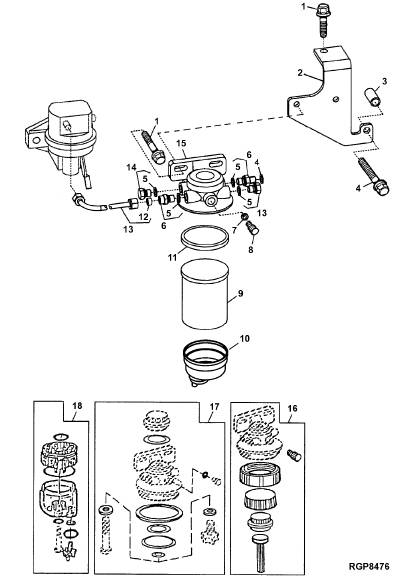

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M7784 SCREW 3 X X M10 X 20
2 R500307 BRACKET 1 X X
3 28H1495 SPACER 1 X X
4 19M7808 SCREW 1 X X M10 X 65
5 51M7040 O-RING 3 X X 9.300 X 2.200 MM
6 RE60029 ADAPTER 1 X X
7 RE46686 PLUG 2 X X
8 R113562 O-RING 1 X X
9 R113563 DRAIN PLUG 1 X X (ALSO ORDER R113562)
10 R113565 O-RING 1 X X
11 RE62424 FUEL FILTER 1 X X
12 .................. SEDIMENT BOWL 1 X X (SUB RE51650)
13 RE51649 SEAL KIT 1 X X
14 RE60854 KIT 1 X X
15 RE516512 KIT 1 X X
16 RE516553 KIT 1 X X
17 RE51650 SEDIMENT BOWL 1 X X
18 R74012 SEALING WASHER 1 X X
19 RE67007 FUEL LINE 1 X X
20 RE70357 FILTER HEAD 1 X X

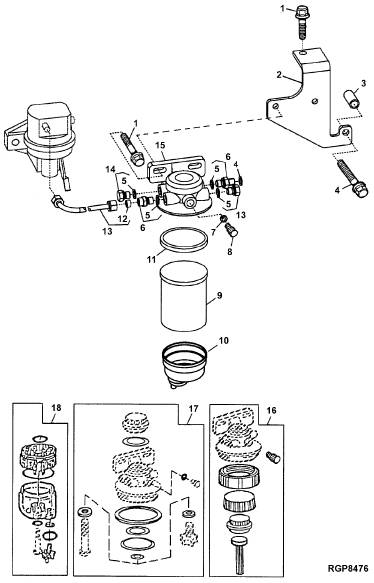

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M7784 SCREW 3 X X M10 X 20
2 R500307 BRACKET 1 X X
3 28H1495 SPACER 1 X X
4 19M7808 SCREW 1 X X M10 X 65
5 51M7040 O-RING 3 X X 9.300 X 2.200 MM
6 RE60029 ADAPTER 1 X X
7 RE46686 PLUG 2 X X
8 R113562 O-RING 1 X X
9 R113563 DRAIN PLUG 1 X X (ALSO ORDER R113562)
10 R113565 O-RING 1 X X
11 RE62424 FUEL FILTER 1 X X
12 .................. SEDIMENT BOWL 1 X X (SUB RE51650)
13 RE51649 SEAL KIT 1 X X
14 RE60854 KIT 1 X X
15 RE516512 KIT 1 X X
16 RE516553 KIT 1 X X
17 RE51650 SEDIMENT BOWL 1 X X
18 R74012 SEALING WASHER 1 X X
19 RE67007 FUEL LINE 1 X X
20 RE70357 FILTER HEAD 1 X X

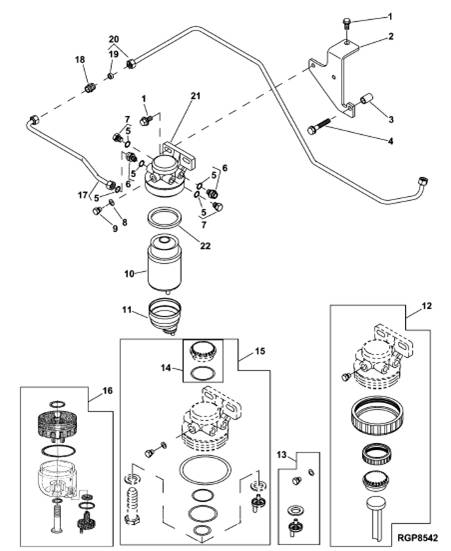

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M7784 SCREW 3 X M10 X 20
2 R500307 BRACKET 1 X
3 28H1495 SPACER 1 X
4 19M7808 SCREW 1 X M10 X 65
5 51M7040 O-RING 5 X 9.300 X 2.200 MM
6 RE60030 FITTING 2 X
7 RE46686 PLUG 2 X
8 R113562 O-RING 1 X
9 R113563 DRAIN PLUG 1 X (ALSO ORDER R113562)
10 RE62424 FUEL FILTER 1 X
11 .................. SEDIMENT BOWL 1 X (SUB RE51650)
12 RE51649 SEAL KIT 1 X
13 RE60854 KIT 1 X
14 RE516512 KIT 1 X
15 RE516553 KIT 2 X
16 RE51650 SEDIMENT BOWL 1 X
17 RE507110 FUEL LINE 1 X
18 R125553 UNION FITTING 1 X
19 R67092 SEAL 1 X
20 RE507111 FUEL LINE 1 X
21 RE70357 FILTER HEAD 1 X
22 R113565 O-RING 1 X

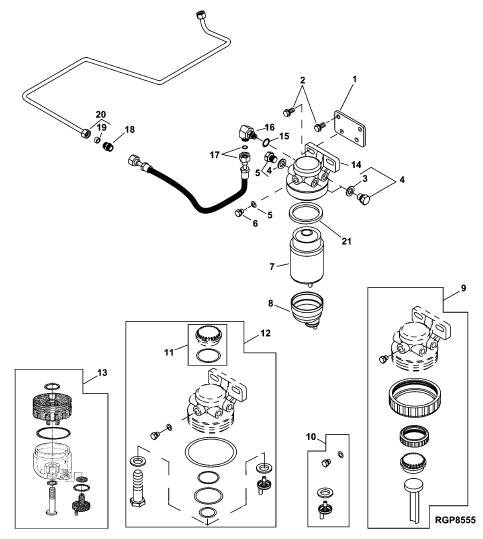

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R123566 BRACKET 1 X
2 19M7784 SCREW 2 X M10 X 20
3 51M7040 O-RING 3 X
4 RE46686 PLUG 1 X
5 R113562 O-RING 1 X
6 R113563 DRAIN PLUG 1 X
7 RE62424 FUEL FILTER 1 X
8 .................. SEDIMENT BOWL 1 X (SUB RE51650)
9 RE51649 SEAL KIT 1 X (ALSO ORDER R113562)
10 RE60854 KIT 1 X
11 RE516512 KIT 1 X
12 RE516553 KIT 1 X
13 RE51650 SEDIMENT BOWL 1 X
14 RE70357 FILTER HEAD 1 X
15 51M7040 O-RING 1 X 9.300 X 2.200 MM
16 38H5022 ELBOW FITTING 1 X
17 RE501739 FUEL LINE 1 X
18 RE507246 HOSE FITTING 1 X
19 R67092 SEAL 1 X
20 RE507111 FUEL LINE 1 X
21 R113565 O-RING 1 X

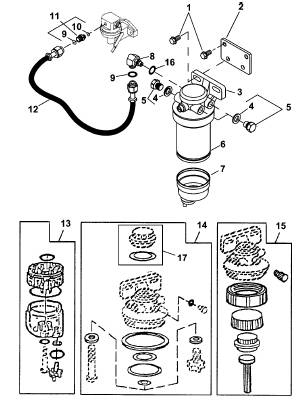

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M7784 SCREW 4 X X M10 X 20
2 R123566 BRACKET 1 X X
3 RE70357 FILTER HEAD 1 X X
4 51M7040 O-RING 3 X X 9.300 X 2.200 MM
5 RE46686 PLUG 3 X X
6 RE62424 FUEL FILTER 1 X X
7 .................. SEDIMENT BOWL 1 X X
8 38H5022 ELBOW FITTING 1 X X (ALSO ORDER R113562)
9 T77613 O-RING 1 X X
10 R500271 O-RING 1 X X (SUB RE51650)
11 RE507247 HOSE FITTING 1 X X
12 RE501739 FUEL LINE 1 X X
13 RE51650 SEDIMENT BOWL 1 X X
14 RE516553 KIT 1 X X
15 RE51649 SEAL KIT 1 X X
16 51M7040 O-RING 1 X X
17 RE516512 KIT 1 X X
